THESIS 2011 / 2012

Hey Guys,

Okay, so we all need to actually join this group and submit your choices by THIS Friday. I am going to attach the link to join the group. Once you do this, please go to the link Prof. Voussoughian posted about the new link. There you will make your 3 choices for thesis. I thought I would post it considering how important it seems. Hope the work is going well. See you guys on Friday.

To Join the group:
http://groups.google.com/group/nyitthesis

To cast your vote for thesis:
https://spreadsheets.google.com/viewform?authkey=COXS__gH&hl=en&formkey=dE51dGhsRGk2QnIyenl3WEF3ZmNYcEE6MQ#gid=0

Kevin -

Elevation Study

1st attempt was trying to take lines from the plans like what Prof. Cody had explained.


2nd attempt was using the window punchouts to create a grid


3rd attempt takes the line from the hidden structure behind the wall. This one helped form the next two

4th attempt is an addition to the 3rd adding more grid lines vertically and having those grid line try to complement the window punchouts

5th attempt doubles the grid lines and then started to break apart throughout the rest of the facade


Overall the I liked the 4th and 5th one but I plan on continuing with the 4th attempt. I think the continuous grid works well with the rest of the project and almost serves and as a "marco" grid to the wet space's "micro" grid

Roof Plan

Fourth Floor Plan

Third Floor Plan

Second Floor Plan

First Floor Plan

Basement Plan

East Elevation

West Elevation

the right side of the image is the closest part (the brick) should i have the brick just thicker lines or leave it? dont know how to make the brick read as the closest thing...

not sure if its too bright or if the water should be a bit different (if it reads more like glass?)

South Elevation

Unfolded Elevation with material

Short Section

Updated Section

Unfolded Elevation with Roof

I think this looks really weird. Is is okay if I show the unfolded elevation without the roof?

Unexploded Program and Circulation

Program and Circulation

Materiality Diagram

Skin Diagram/ Continuous Elevation

Does anyone have an example of what the skin diagram/continuous elevation should look like?

West Facade Detail 1/2" = 1'-0"

color in the plan

pool water should have a color ...
and if your using a certain technique of coloring the section it should have a corresponding technique in plans;
i am refering to a conversation i had with dom

see site plan on cody thesis studio

site plan making technique...

where the site plan uses google map and overlays information of your site

tuesday: on or before

looking for the following on or before Tuesday:
must see! before final
Jamies: diagrams,
Josh: overall section and wall section,
Tariq: wall section,
Guiseppe's: wall section,
Melissa's: wall sections & diagrams
and anything else anybody want to speak about, but the above is a must.

1/32" Diagrams with Associated Plans and Sections

1. Base

2. Volumetric

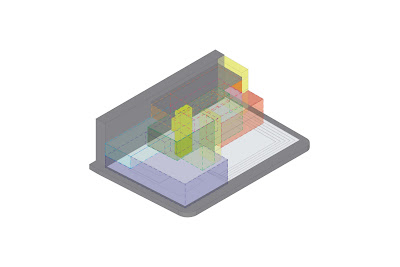

3. Program

4. Movement

5. Event

6. Structure

What type of plans or sections should be associated with the base and volumetric diagrams?

Section for Oz

Structure Renderings

Reworked Long Section

Reworked Roof Plan

Reworked Fourth Plan

Reworked Third Floor Plan

Reworked Second Floor Plan

Reworked First Floor Plan

Re: Giuseppe: space in details

Do these components serve as a fin and mullion as described in the previous post. The fin (11) spanning across all the columns, hold the clip (mullion, 10) holding the glass in place.

josh: reminds me of your upper facade in concept

exploded, verse bottom imploded

layer of material- melissa

number 20 should be edge of spa floor- guiseppe

thickness and depth in ceiling- giusepp

Giuseppe: space in details

bent beam to fin to mullion frame to glass up to roof w thickness ...to walk on,

i highlighted these areas

Spas?

Does anyone have a website that has good examples of spa layouts? Something that may illustrate what these specific spa rooms should look like. Thank you.

tomorrow

Thesis meeting will end at 3:00. I will see you after this, next class will be the last official class before the final.
I have lined up two interested architects for the final in addition to Professor Cody. The final will be very informative because these critics are not only Architects but understand the role of educators so I am looking forward to the final being very constructive.

Elevations

with shade at noon

no shade

Spring St.

I chose a blue brick base and red framing around the windows and concrete panels as a color scheme to follow similar characteristics that exist on Spring St.
